Car elevators, a modern marvel in architectural design, cater to the growing need for efficient parking solutions in both residential buildings and commercial spaces. Understanding the specific requirements based on traffic patterns, the number of users, and available space is crucial in determining the optimal car elevator dimensions. Compliance with local building codes ensures safe and compliant installation. Whether for a compact residential shaft or a spacious commercial elevator shaft, proper planning and consultation on the shaft size, width, and weight capacity are vital. These elevators, tailored to the needs of car showrooms or office buildings, have a direct impact on accessibility and convenience, making them a valuable asset in modern construction projects.

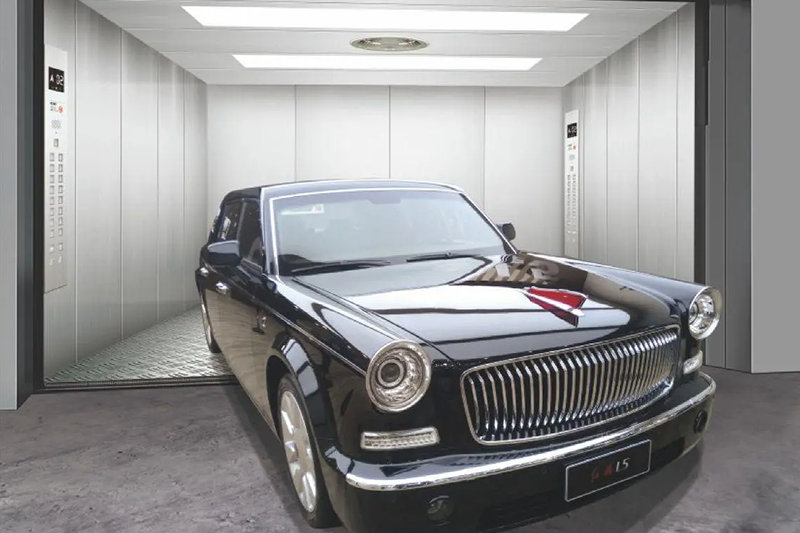

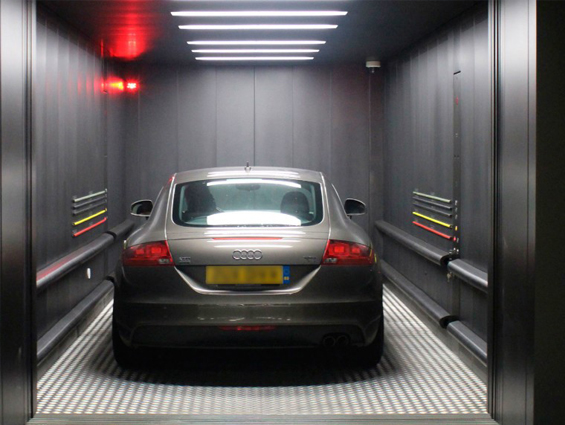

A car elevator, also known as an automotive elevator or vehicle elevator, is a lift system designed to transport vehicles vertically between floors. Unlike conventional passenger elevators, car elevators are engineered to carry the weight and dimensions of vehicles such as sedans, SUVs, or trucks. They are typically used in:
Residential garages or villas
Commercial parking structures
Car dealerships and showrooms
Hotels or mixed-use buildings with integrated parking
Car elevators differ from traditional lifts in key aspects:
Higher load capacity (typically 3000–5000 kg or more)
Larger platform sizes (to fit vehicle width and length)
Special safety features (e.g., anti-skid flooring, car position sensors)
While the size of car elevators can differ a lot based on what you need, knowing the standard sizes is a good start for your planning. For homes, the usual sizes are 7-8 feet wide and 13-15 feet long, with a shaft width of 8-10 feet.
For commercial use, car elevators are often bigger. They usually go over 8 feet in width and 15 feet in length. These sizes are just general ideas. It is important to talk to a professional elevator installer to find out the best sizes for your specific needs.
Residential car elevator sizes mainly depend on the size of the homeowner's cars and the space available in the property. Most homeowners want to fit standard cars or SUVs. This means the elevator inside usually measures around 7-8 feet wide and 13-15 feet long.
Platform Width: 2500 mm (2.5 m)
Platform Length: 5200 mm (5.2 m)
Platform Height: 2200 mm (2.2 m)
Load Capacity: 3000–3500 kg
Door Opening Width: ≥2500 mm
Commercial car elevator sizes depend on a few important factors. These include the use of the elevator, the size of vehicles that will use it, and how much weight it must hold. For example, auto dealerships may need larger elevators. They should be big enough for SUVs or small trucks. This means the platform sizes often need to be more than 8 feet wide and 15 feet long.
Platform Width: 2800–3000 mm
Platform Length: 5500–6500 mm
Platform Height: 2300–2500 mm
Load Capacity: 4000–5000 kg or more
Door Opening Width: ≥2600 mm
A dual vehicle elevator lets two cars fit at once. It's important to think about the size of the elevator shaft and the specifications of the elevator car. You also need to know the weight they can hold. This will help with traffic patterns and the number of people using it. These elevators can be for car showrooms or residential buildings. The width, accessibility, and power supply must fit specific needs. Good planning and following local building codes will help the elevator work well in different buildings. It's smart to consult about standard sizes and the layout, especially for SUVs or bigger vehicles.
Platform Width: 3200–3400 mm
Platform Length: 7500–8000 mm
Platform Height: ≥2500 mm
Load Capacity: 6000–8000 kg
Use Case | Suggested Dimensions (W × L × H) | Notes |
|---|---|---|
Single residential use | 2.5m × 5.2m × 2.2m | Standard sedan fit |
SUV/large vehicles | 2.8m × 6.0m × 2.3m | Includes SUV clearance |
Commercial parking | 3.0m × 6.5m × 2.4m | High-traffic recommended size |
Dual vehicle elevator | 3.2m × 8.0m × 2.5m | For stack parking |
When figuring out the right size for a car elevator, there are a few important things to think about. First, consider what types of vehicles you will use the elevator for, like compact cars, SUVs, or trucks. This choice will help decide the size of the platform you need.
Also, things like how often you plan to use the elevator, the limits of the building’s structure, and the local safety rules are very important. These factors will also help determine the final dimensions of the car elevator.
The kind of vehicles you want to move in the elevator is important for deciding the size of the car elevator. For example, if you need to fit large SUVs or trucks, the size of the platform, the width of the doors, and the lifting capacity must be much bigger than if the elevator is meant for smaller cars.
The type of lift you choose also matters. Hydraulic lifts are known for working smoothly but may need a deeper pit, which affects the overall size. In contrast, traction lifts are faster and can go further, so they might require a taller hoistway.
Checking vehicle specifications and talking with an elevator expert will help you find the best dimensions for the elevator car and the right type of lift technology.
The expected usage frequency, or how often people will use the car elevator, is an important factor in deciding its size. In busy places like commercial parking garages or apartment buildings where many people rely on the car elevator, it’s better to choose a larger cabin and a bigger door.
Here's why usage frequency is important:
Traffic Flow: Larger car elevators can handle more vehicles or bigger ones efficiently. This helps cut down wait times and keeps traffic moving smoothly.
User Experience: Having enough space inside the elevator car makes the experience better for users. It allows them to get in and out of their vehicles easily.
By analyzing the expected traffic patterns and looking at peak usage times, you can pick the right size for a car elevator. This helps avoid congestion and improves the movement of vehicles.
Building constraints are very important when figuring out the right size for a car elevator. The space in the building, including the ceiling height, the distance between floors, and any possible obstacles, will determine how big the elevator shaft and cabin can be.
Local building codes also have specific rules about elevator shaft size, fire safety, ventilation, and safety features. These rules can change a lot from one area to another. That's why it's a good idea to talk to a local elevator expert during the planning phase.
If you don’t take building constraints seriously, you might face expensive redesigns, delays, or even safety problems. A detailed inspection of the site and discussion with professionals are key to handling these limits properly.
Safety rules are very important for setting the size of car elevators. They focus on keeping passengers safe and making sure the system works well. Local building codes and safety guidelines set rules for different parts, including:
Weight Capacity: Elevators must be built to support the highest expected load. This keeps vehicles and passengers safe during transport.
Emergency Features: Elevators should have safety features like emergency brakes, alarms, and communication systems as required by the rules.
Following these regulations is important for keeping users safe. It also stops possible accidents and legal issues. It is essential to work with reliable car elevator manufacturers and installers who follow safety guidelines.
The way the entrance and exit points for your car elevator are designed is very important. It helps cars move smoothly and makes it easy for users. You should think about the layout around the elevator, the width of the doors, and how easily people can get in and out.
When you plan the entrance and exit, you need to make sure there is enough space for cars to move without hitting anything. The doors should be wide enough for the biggest vehicles you expect, so they won’t get scratched or damaged.
Also, try to add features that make it easier for everyone to use. This can include flat boarding areas, good lighting, and easy-to-read signs. These features will help create a friendly and convenient experience for all.
When you add a car elevator to your building design, it is important to follow best practices. This helps with its function, safety, and lifespan. Start by talking to experienced elevator experts. They can help you understand your specific needs, site limits, and local rules.
Make sure your building has a strong structure. It should be able to hold the weight of the elevator and the vehicles it transports. You also need enough ventilation to avoid exhaust fumes. Finally, think about how it looks. Choose finishing materials that match the overall design of the building for a better look.
The terms "car elevator" and "car lift" are often used as if they mean the same thing. However, they are different systems with their own sizes and uses. A car elevator is a built-in part of a building. It moves cars between different floors and follows strict safety rules.
In contrast, a car lift is usually smaller and can be moved around. It is mainly used for storing vehicles or for service work in one-story spaces. Car lifts do not have the same safety features and rules as car elevators. This makes them better for certain tasks rather than for general transport.
Installing a car elevator at home is a big task. It needs careful planning and teamwork with skilled experts. To do it well, you must first look at your needs, site conditions, and local building codes.
Choosing a trusted elevator company is very important. They can help you with the designs, permits, and building work. A good installation will make sure the elevator is safe, reliable, and meets industry standards.
Before starting the installation of your car elevator, you need to think about a few important things. First, talk with your elevator company to decide on the specifications. This includes size, load capacity, and any features you want.
Next, work with electricians to check if your home's power supply is enough. You may need to make upgrades to meet the elevator's electrical needs. Finally, get to know local building codes. Don't forget to obtain the necessary permits to avoid any delays during the installation.
Here’s a quick checklist to guide you:
Finalize elevator specifications and get a detailed quote from your chosen company.
Confirm that your power supply is sufficient and arrange upgrades if needed.
Obtain the required permits and approvals from local authorities.
Once you take care of pre-installation steps, you can start the installation process in an organized way. First, you need to prepare the site. This means digging the elevator pit if needed, and making the area strong enough to hold the elevator's weight.
After preparing the site, the elevator company will put in the guide rails. These rails help the elevator car move smoothly. Next, they will install the elevator car, motor, and control system. Then, they will carry out careful safety checks and adjustments to make sure everything works well.
The last step is to install the doors, call buttons, and other extras. After a complete inspection and testing period, your new car elevator will be ready to use. It will provide easy and stylish ways to travel up and down in your home.
Car elevators, with their specific car elevator dimensions tailored to residential buildings or commercial use, play a vital role in enhancing accessibility and convenience. Adhering to local building codes and considering factors like traffic patterns and shaft dimensions are crucial. Proper planning based on available space is key, especially in office buildings or car showrooms. The specific needs of each project dictate the elevator's specifications, from size to weight capacity. Choosing between a car elevator and a car lift depends on the building type and layout. Consultation with experts ensures the installation process aligns with the requirements. Whether it's residential or commercial, the efficient operation of a car elevator has a direct impact on the overall functionality and appeal of a space.
The space required for a home car elevator can differ. Usually, a shaft size of 8 feet wide and 15 feet deep is suggested. This size fits most cars well. It’s a good idea to talk with an elevator expert. They can help check your specific needs and layout.
